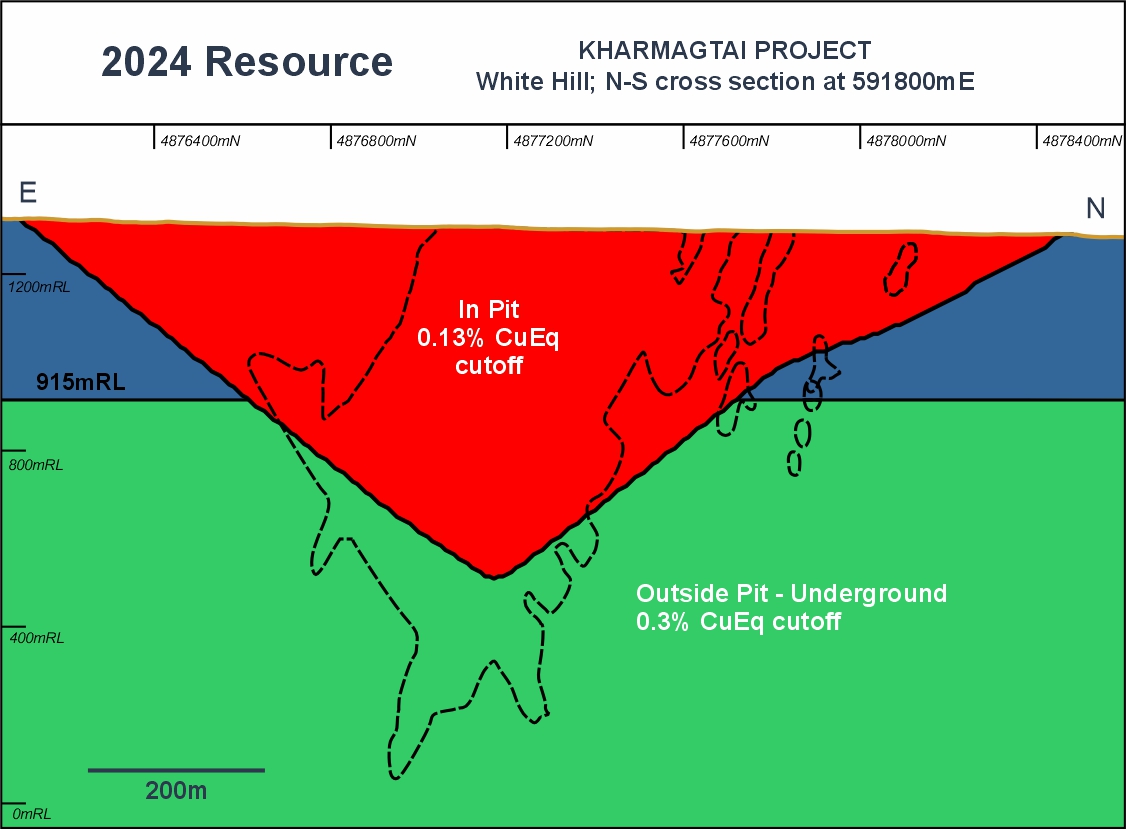

Figure 3: Schematic Cross Sections showing the cut-off grade reporting boundaries at White Hill. Red zone represents MRE open pit potential with a cutoff of 0.13% CuEq, blue area “outside open pit” and green area represents the area defined as underground potential with a 0.3% CuEq cutoff applied. These are shown separately as previous MRE’s used this 915mRL level as the change from Open Pit and Underground.
